Perfect Combination of Practical Technology Optical LED street Light
Model Number : EK-LDC16
ఉత్పత్తి పేరు: LED స్ట్రీట్ లైట్
వాట్లను సిఫార్సు చేయండి: : 50వా 100వా 150వా 200వా
Waterproof Index : IP66
భూకంప నిరోధక సూచిక : IK08 IK09
Working Temperature(℃): -20-50
Surface Color : RAL9007 (available on request)
Contain Accessories : Complete finished street lights

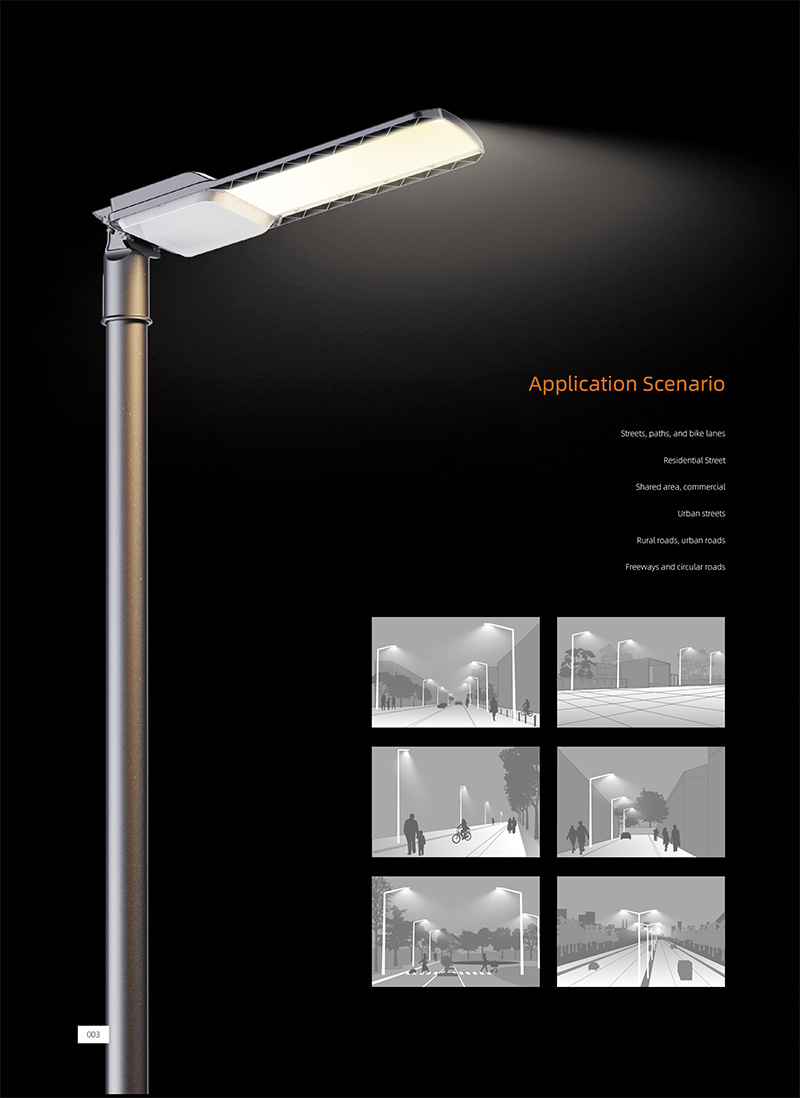

Application Scenario
- Streets,Paths and bike lanes
- Residential Street
- Shared area, commercial
- Urban streets
- Rural roads,urban roads
- Freeways and cicular raods
Technical Norm
General highlights
- Used for any outdoor lighting places such as roads, squares
- Working temperature: -30 。 C/+50 。 c

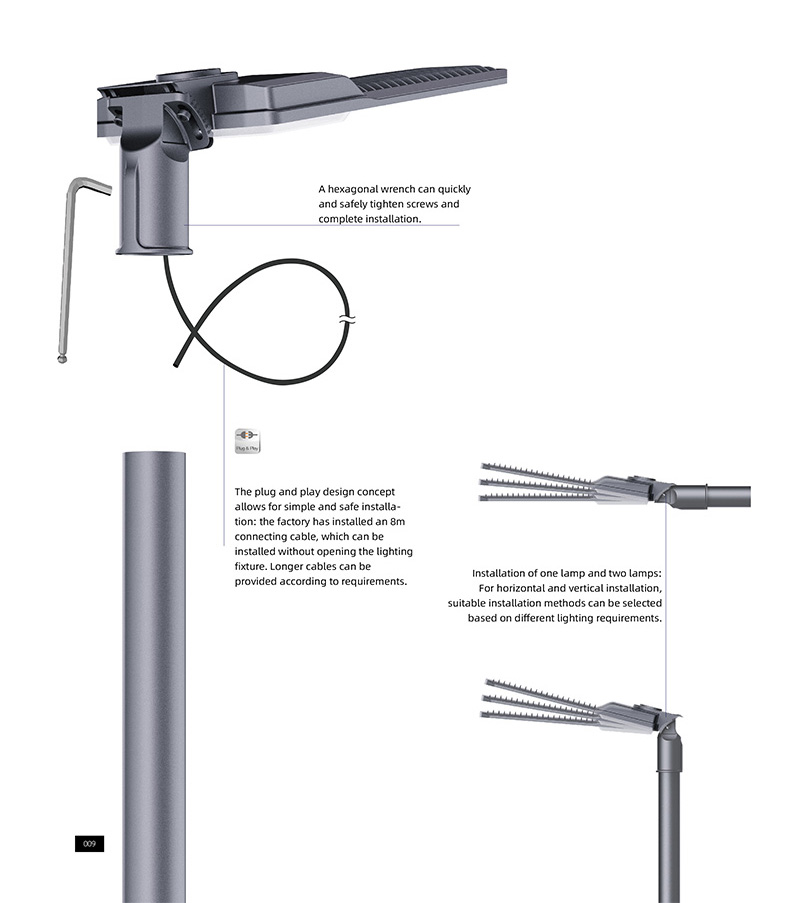

- Adopting buckle design for easy installation and maintenanceLumen
- Using high-quality chips
- Less light decay, long-lasting and durable
- Lamp poles with different calibers
- Excellent heat dissipation
Optical properties
- Different lens arrangements in different areas and installation
- Uniform light distribution

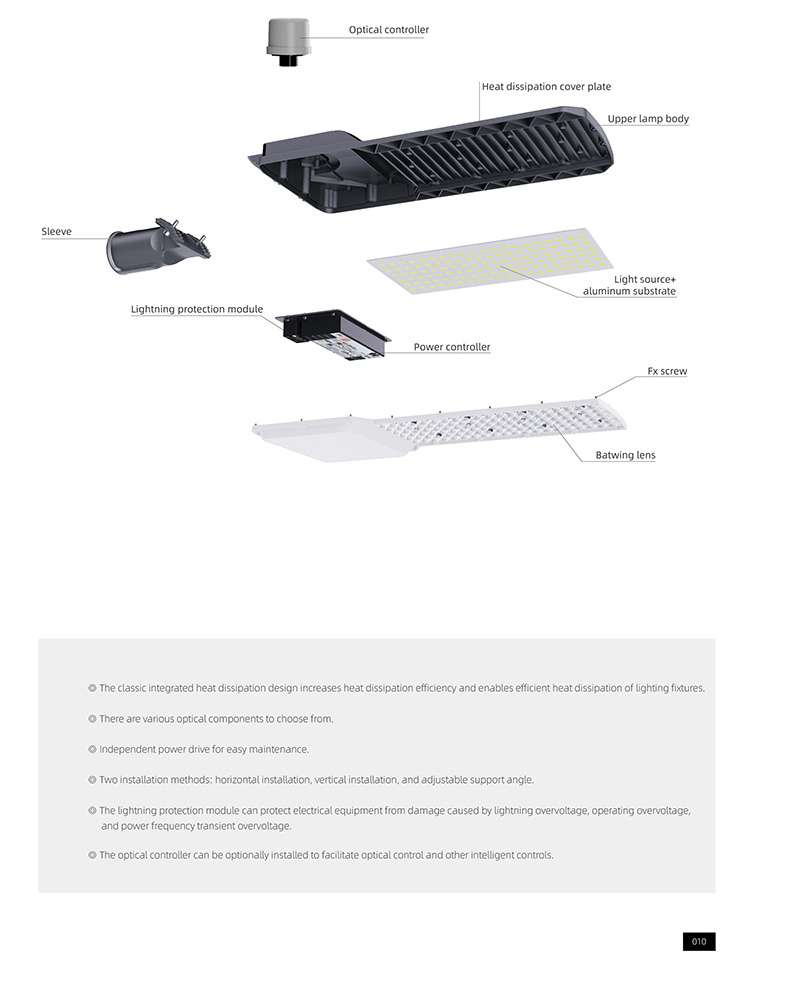

- Modular design of light source for easy replacement
- output(absolute metering): 100o0lm-400oolm
- Color temperature: 2200K-6500K
- Color rendering index:>70
Shell and Finis
- Corrosion resistant die cast aluminum casing Cancer-A Cancer-B
- Electrostatic powder coating
- Protection level: IP66
- Impact protection: IK09

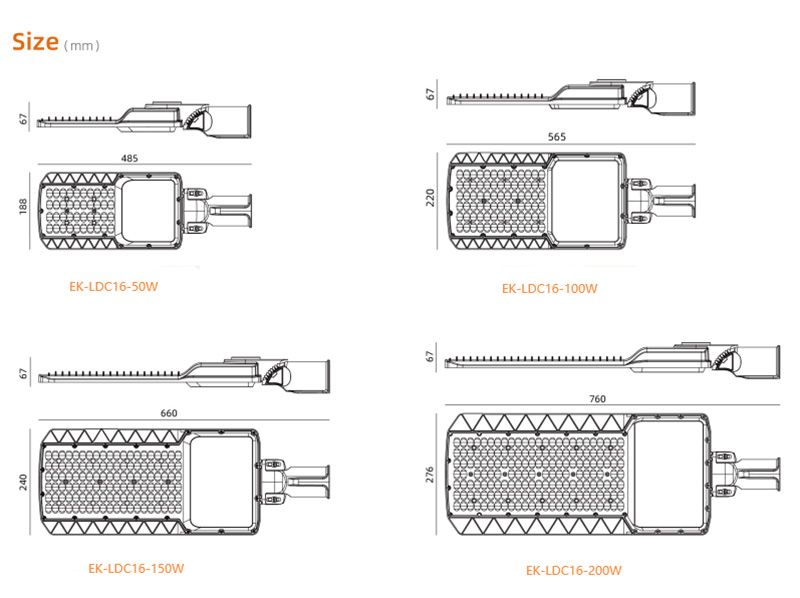

Technical Parameter
Technical Parameter | ||||
మోడల్ | EK-LDC16-50W | EK-LDC16-100W | EK-LDC16-150W | EK-LDC16-200W |
శక్తి | 50W | 100W | 150W | 200W |
ఇన్పుట్ వోల్టేజ్ | AC100-277V | |||
ఫ్రీక్వెన్సీ పరిధి | 50Hz/60Hz వద్ద | |||
శక్తి కారకం | 0.95 >0.95 | |||
మొత్తం లైటింగ్ ప్రభావం | 180lm/w | |||
LED జీవితకాలం | 50000H | |||
రెండరింగ్ సూచిక | సిఆర్ఐ70 | |||
రంగు ఉష్ణోగ్రత | 2200K-6500K | |||
IP | IP66 | |||
IK | IK09 | |||
ఆపరేషన్ ఉష్ణోగ్రత | మైనస్ 30+50℃ | |||
నిల్వ ఉష్ణోగ్రత | minus 20+60℃ 10%-90%RH | |||
లెన్స్ మెటీరియల్ | పిసి లెన్స్ | |||
సంస్థాపన ఎత్తు | 6-8mm | 6-8mm | 8-10మి.మీ | 10-12మి.మీ |
